Power Injector

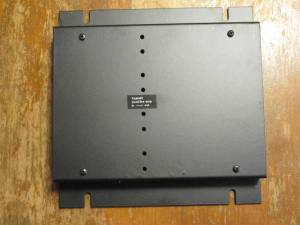

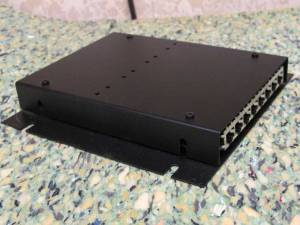

It's a power supply, with a distribution box. There are 16 jacks, 8 pairs, for “injecting” power into Studiohub+ cables, to power modules when you don't have another power source.

Connectors

  • Input/Output: RJ-45
    1. L in/out +, jumped
    2. L in/out -, jumped
    3. R in/out +, jumped
    4. Ground
    5. NC
    6. R in/out -, jumped
    7. Power out -12V
    8. Power out +12V

Power supply

  • 24 volts, 0.5 A, external power supply, wall module.

Price

Kit Assembled
with power supply $50. $100.
